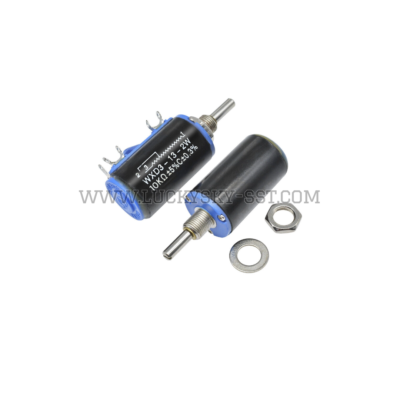

Technical Parameters



Resistance range	5.6KΩ
resistance tolerance	±5%
Rotation angle	3600°±20°
Number of turns	10 laps
Rated voltage	160V
starting torque	3.5~100mN.m
rated power	2W(85℃) 0W(125℃)
Linear Accuracy	±0.3%
mechanical durability	10000 weeks



Features

• Bushing and servo mount designs available • Linearity ± 0.25 %, down to 0.05 % on request • Special resistance tolerances to 1 % • Rear shaft extensions and support bearing • Metric shaft available • Dual gang configuration and concentric shafts • High torque, center tap, slipping clutch on request • Special markings and front shaft extensions

Electrical Specifications

Model: 534 Resistance range - standard values: 100 Ω to 100 kΩ Capability range: 10 Ω to 200 kΩ Standard tolerance: ± 5 % Linearity (independent): ± 0.25 % Noise: 100 Ω ENR Rotation (electrical and mechanical): 3600° +10° -0° Power rating (at 70 °C): 2.0 W Insulation resistance: 1000 MΩ minimum 500 VDC Dielectric strength: 1000 VRMS minimum 60 Hz Absolute minimum resistance: Not to exceed linearity x total resistance or 1 Ω, whichever is greater Temperature coefficient: 20 ppm/°C (standard values, wire only) End voltage: 0.25 % of total applied voltage, maximum Phasing: CCW end points - section 2 phased to section 1 within ± 2° Taps: Center tap only
