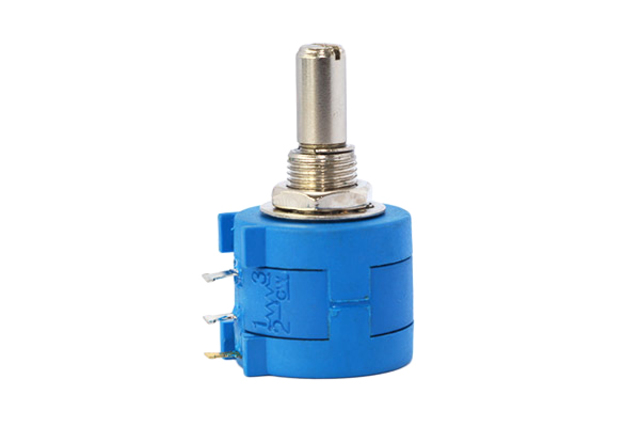

Potentiometer BOURNS® Precision 3590S-2 Multi Turn

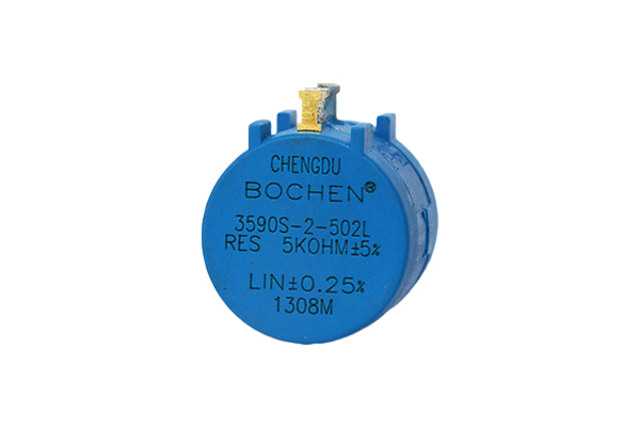

Potentiometer BOURNS® Precision 3590S-2 Multi Turn - Image 2

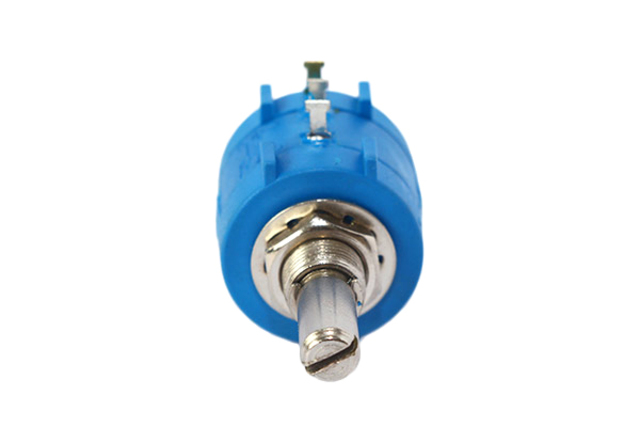

Potentiometer BOURNS® Precision 3590S-2 Multi Turn - Image 3

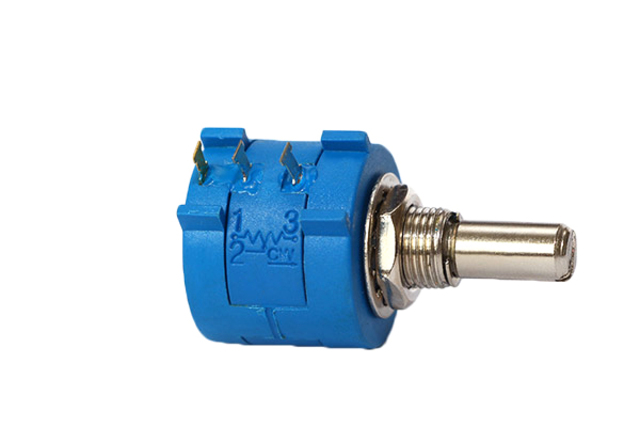

Potentiometer BOURNS® Precision 3590S-2 Multi Turn - Image 4

Potentiometer BOURNS® Precision 3590S-2 Multi Turn

In Stock
د.إ0,00
In Stock
Add to wishlist Compare
Categories: ,
Shaft Metal/Plastic
Bushing Metal/Plastic
Element Wirewound
Terminal PC Pins/Solder Lug/Side
Taper-Linear x
Linearity ±0.25 %
Resistance-Minimum 200 ohms
Resistance-Maximum 100K ohms
Power Rating 2 watts
Package Diameter 7/8 “
Shape Round
Rotational Life 1M
Number of Turns 10
Sealable IP65
Chose From 100 Ohm, 200 Ohm, 500 Ohm, 1k, 2K, 5K, 10K, 20K, 50K, 100K, 200K

Reviews

There are no reviews yet.

Be the first to review “Potentiometer BOURNS® Precision 3590S-2 Multi Turn”

Your email address will not be published. Required fields are marked *
