Showing all 4 resultsSorted by latest
PLASTIC SILICON RECTIFIERSFEATURES ● Low cost ● Diffused junction ● Low forward voltage drop ● Low reverse leakage current ● High current capability ● The plastic material carries UL recognition 94V-0 MECHANICAL DATA ●Case: molded plastic ●Polarity: Color band denotes cathode ●Weight: 0.07 ounces , 2.1 grams ●High temperature soldering guaranteed: 260°C/10 seconds/.375”,(9.5mm) lead lengths at 5 lbs., (2.3kg) tension
PLASTIC SILICON RECTIFIERSFEATURES ● Low cost ● Diffused junction ● Low forward voltage drop ● Low reverse leakage current ● High current capability ● The plastic material carries UL recognition 94V-0 MECHANICAL DATA ●Case: JEDEC R-6 molded plastic ●Polarity: Color band denotes cathode ●Weight: 0.07 ounces , 2.1 grams ●High temperature soldering guaranteed: 260°C/10 seconds/.375”,(9.5mm) lead lengths at 5 lbs., (2.3kg) tension
Fast Recovery RectifierFeatures ● High efficiency ● High current capability ● High reliability ● High surge current capability ● Low power loss ● Glass passivated chip junction ● Solder dip 275 °C max. 7 s, per JESD 22-B106 Mechanical Data ● Package: DO-204AC(DO-15) Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant ● Terminals: Tin plated leads, solderable per J-STD002 and JESD22-B102 ● Polarity:Color band denotes cathode end

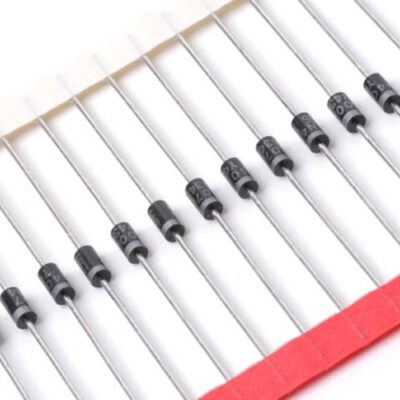

General Purpose RectifierFeatures ● High efficiency ● High current capability ● High reliability ● High surge current capability ● Low power loss ● Glass passivated chip junction ● Solder dip 275 °C max. 7 s, per JESD 22-B106 Typical Applications For use in general purpose rectification of power supplies, inverters, converters, and freewheeling diodes for consumer, and telecommunication. Mechanical Data ● Package: DO-204AL(DO-41) Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant ● Terminals: Tin plated leads, solderable per J-STD002 and JESD22-B102 ● Polarity:Color band denotes cathode end
