Push Button Switch 19mm Metal Momentary Waterproof Power Push Switch Button
Push Button Switch 19mm Metal Momentary Waterproof Power Push Switch Button - Image 2

Push Button Switch 19mm Metal Momentary Waterproof Power Push Switch Button

In Stock
د.إ0,00
In Stock
Add to wishlist Compare
Categories: , ,

Features:

  • 100% brand new and high quality.
  • It is made of high quality metal material, firm and durable in use.
  • This metal button switch has the function of waterproof and automatic reset
  • The shell is made of brass plated nickel and the contact part is silver alloy, with great electric conductivity.
  • Widely used in entrance guard, various additional electric equipment, relay, inside or outside the car or any circuit controls.

Specifications:


Material: nickel plated, silver alloy
Type: Self-reset, press: ON, loosen: OFF
Waterproof level: IP65
Type: flat head
Rated current and voltage: 3A 250V
Mounting hole: 19mm / 0.75in
Weight: Approx. 75g

Reviews

There are no reviews yet.

Be the first to review “Push Button Switch 19mm Metal Momentary Waterproof Power Push Switch Button”

Your email address will not be published. Required fields are marked *

Related products

Switch Limit Micro V-153-1C25 Long Straight Hinge Lever Arm SPDT
Add to wishlist Compare

Switch Limit Micro V-153-1C25 Long Straight Hinge Lever Arm SPDT

د.إ0,00 Add to cart
About this item Material: plastic and metal Color: red, black and silver Actuator Action: momentary Actuator Type: long straight hinge lever Rating: 15A, 1/2Hp, 125/250Vac; 0.6A,125Vdc; 0.3A, 250Vdc; 0.6A,125Vdc; 0.3A, 250Vdc
Switch Limit Micro V-156-1C25 Long Hinge Roller Arm SPDT
Add to wishlist Compare

Switch Limit Micro V-156-1C25 Long Hinge Roller Arm SPDT

د.إ0,00 Add to cart
About this item Material: plastic and metal Color: red, black and silver Actuator Action: momentary Actuator Type: Long Hinge Roller Arm Rating: 15A, 1/2Hp, 125/250Vac; 0.6A,125Vdc; 0.3A, 250Vdc; 0.6A,125Vdc; 0.3A, 250Vdc
Push Button Switch 10mm Metal Mini Momentary Power Push Switch Button DIY
Add to wishlist Compare

Push Button Switch 10mm Metal Mini Momentary Power Push Switch Button DIY

د.إ0,00 Add to cart
Feature:
1. The housing is made of stainless steel material for durability 2. Can be used in wet or dusty environments 3. Ideal for electronic DIY projects 4. The contacts are in the normally open form with stable performance 5. Suitable for electromagnetic starters, relays, horn button switches, car modification, host buttons, buttons and button devices, etc.
Specification:
Condition: Brand new Item Type: Metal Push Button Switch Housing Material: Stainless Steel Contact Form: 1 Normally Open (1NO) Form: Momentary Reset Installation Opening: 12mm Rated Voltage: 250V Rated Current: 3A Mechanical Life: 5 Million Times Electrical Life: 500,000 Times Optional Style: Flat Head, High Flush Flat Head Size: Approx. 21.5 x 12mm / 0.8 x 0.5in High Flush Size: Approx. 12 x 23mm / 0.5 x 0.9in
SWITCH PUSH WHITE N/O CONTACTS PBS-110
Add to wishlist Compare

SWITCH PUSH WHITE N/O CONTACTS PBS-110

د.إ0,00 Add to cart
SPECIFICATIONS: Colour: White Button switch: PBS-110 Terminals: 2 Pin Contact terminal: NO (normally open) Contact resistance: <50mΩ Rated current: 1A Rated voltage: 250V AC Material: Plastic and Metal Rated life: > 10,000 presses Packaging: 100 Pcs/box Hole diameter: 7mm Button diameter: 6mm Diameter: 25mm x 9mm

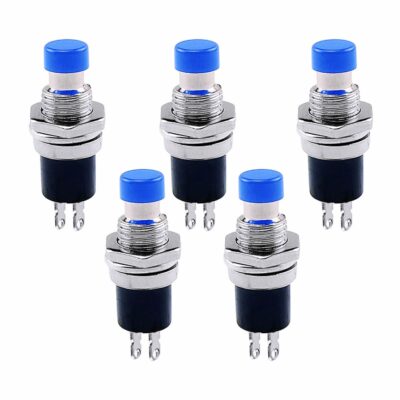

SWITCH PUSH BLUE N/O CONTACTS PBS-110
