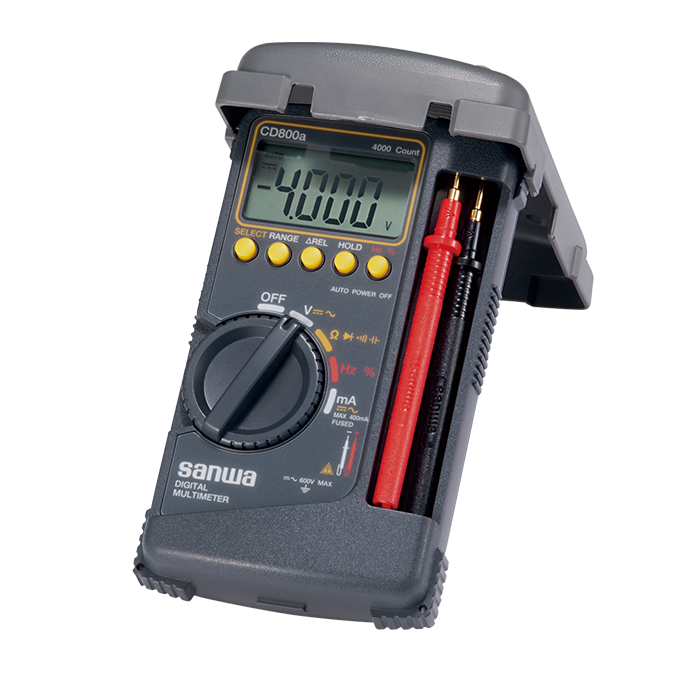

SANWA CD800a Digital Multimeter All-in-One
In Stock
د.إ0,00
In Stock
4000 counts
Best accuracy 0.7％
Auto power off(30min.)(cancelable)
Low power ohm(input voltage 0.4V)at continuity range
Solid & portective body cover that can also be used as a tilt stand
Chip resister holder behind the body cover
Description
CD800a: Measuring range
DCV: 400m/4/40/400/600V
ACV: 4/40/400/600V
DCA: 40m/400mA
ACA: 40m/400mA
Resistance: 400/4k/40k/400k/4M/40MΩ
Capacitance: 50n/500n/5μ/50μ/100μF
Frequency: 5Hz～100kHz
Duty cycle: 20%～80%
Continuity: Buzzer sounds at between 10Ω and 120Ω Open voltage:Approx.0.4V
Diode test: Open voltage:approx.1.5V
Display numeral display: 4000
Sampling rate: 3 times/sec.
Bandwidth: 40Hz～400Hz
Fuse: 0.5A/250V 1.5kA Φ5×20 Ceramic
Battery: R6P(1.5V)x2
Battery life: Approx.500h (manganese battery) at DCV range
Size/Mass: H176×W104×D46mm/Approx.340g
Test lead length/Pin tip: Length: approx. 0.7m/19mm
